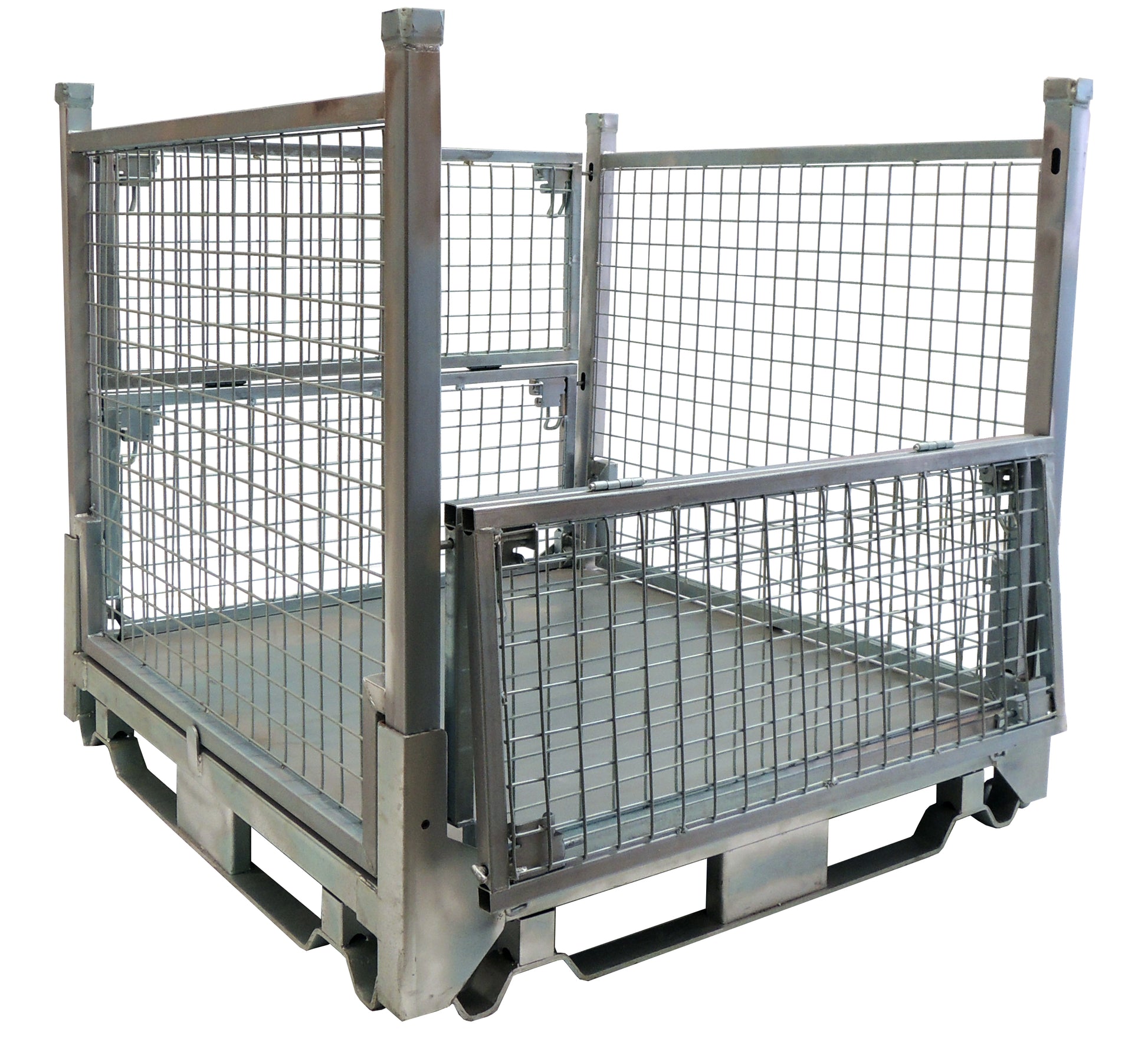

Stillage Mesh Cage

Our stillage mesh cages are an excellent form of warehouse and yard storage.

These units are stackable as well as having the capability of being stored in pallet racking.

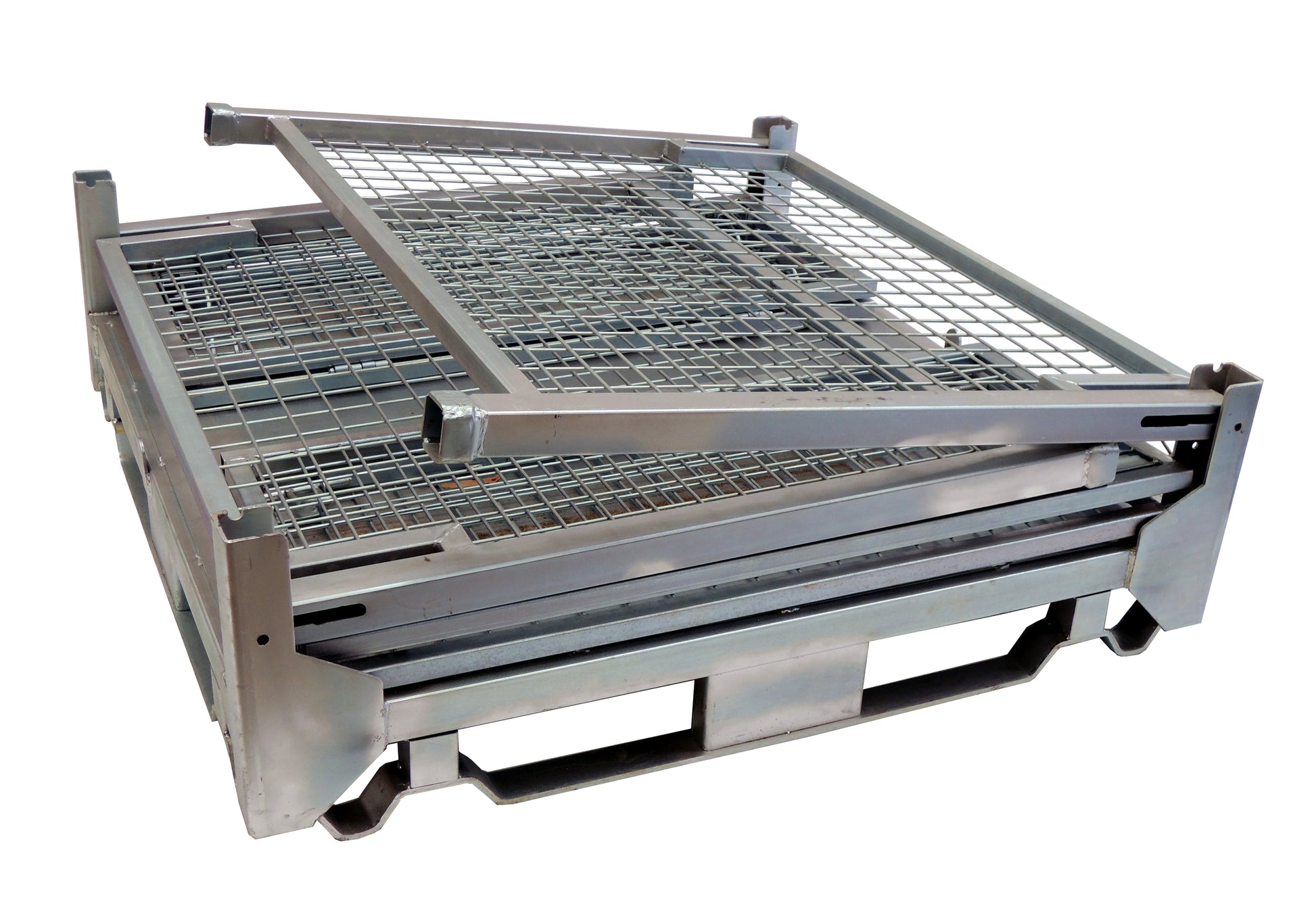

Each unit is capable of being folded down for easy storage when not in use.

Each stillage cage can be loaded as follows;

• Maximum total load placed inside the cage = 1000kgs
• Maximum stacking height when fully loaded = 4 cages high

Cages must be lifted using a forklift with the tynes extending the full width of the cage and the load distributed evenly between the two tynes.

Engineering certified to design requirements of  AS4991-2004 Lifting Devices and AS4100-2020 Steel Structures.

Dimension:	1150mm Long x 1150mm Wide x 1120mm High
Folded Height:	355mm
Load Capacity:	1000kg MAX UDL
Collapsible:	Yes
Safe Stacking Height:	4
Construction:	Heavy duty base with SHS frame and 50x50x3.5mm mesh walls
Finish:	Electro Galv
Rackable:	Yes – Can be put into standard 840/838mmD racking
Engineering certification	Latest engineer certification certificate issued 9th March 2023
